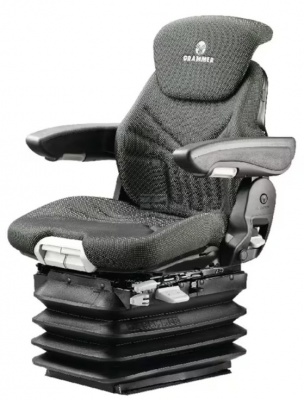

Sēdeklis Grammer Maximo Comfort Plus new design

Brand
Grammer

Details
Air-sprung seat
With longitudinal horizontal suspension
Automatic weight adjustment 50–130 kg

Application range
For medium-sized and heavy tractors and construction machines

Properties
Seat cushion width 530 mm
Spring travel: 100 mm
Height adjustment 60 mm, infinitely variable
With mechanical spinal disc support
APS: automatic positioning system
Seat cushion depth and inclination adjustment

Benefits
Extremely comfortable seat
Protects the back from impacts
Effectively prevents spinal disc damage

Long description
Application:
For medium-sized and heavy tractors and construction machines

Benefits:
Extremely comfortable seat
Protects the back from impacts
Effectively prevents spinal disc damage

Consist of:
Seat
Arm rests, height adjustable, inclination adjustable and foldable 65 mm x 270 mm
With integrated backrest extension

Details:
Air-sprung seat
With longitudinal horizontal suspension
Automatic weight adjustment 50–130 kg

Properties:
Seat cushion width 530 mm
Spring travel: 100 mm
Height adjustment 60 mm, infinitely variable
With mechanical spinal disc support
APS: automatic positioning system
Seat cushion depth and inclination adjustme

Suspension type
Pneumatic

Total width
530 mm

Consists of
Seat
Arm rests, height adjustable, inclination adjustable and foldable 65 mm x 270 mm
With integrated backrest extension

Model
MSG95A/731

Upholstery colour
Black

Upholstery material
Fabric

Height adjustment
8 cm

Depth
631 mm

Max. working load
130 kg

Suspension stroke
10 cm

Min. working load
50 kg

Back angle adjustment
35 °

Total length
631 mm

Total height
754 mm

Supply voltage
12 V
